1. Bed full size: 2030-2230x990-1050x500-1000mm

2. Full width:including the side rail:1050mm

       Without the side rail:990mm

3. Sleep surface size:1960x900mm

4. One step could detachable ABS Head And Foot Board

5. Swing up down type ABS plastic 4pcs side rail

6. Maximum static safe load:450kg

   Maximum dynamic safe load:400kg

7. Bed adjustable functions:
  a) Height of bed adjustable from500 mm to 1000mm

  b) Back section adjustable from 0 to 70°
  c) Knee section adjustable from 0 to 30°

  d) Trendelenburg and Reverse-Trendelenburg from 0 to 12°

8. Backrest manual CPR function(Quick release)

9. Backrest could be x-Ray

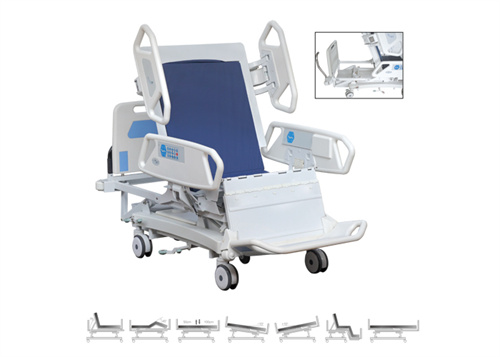

10. With chair position for easy out of bed or transfer to other wheelchair

11. I.V. pole holder on four corners

12. Linak motor with backup battery

13. Four pieces ABS side rails with built in patient controller

14. Bed frame are made of cold-rolled steel, and coated by electrostatic powder coating

15. 4 Hooks for drainage

16. Four castors 12.5cm diameter with central locking system and steering mechanism

17. Trendelemburg and reverse Trendelenburg degree indicator built in side rail

18. With bumpers on four corners.

19. 20cm stretchable mattress base

20. Power:110-240V,50-60Hz(optional)

21. With one piece 15cm antiseptic foam mattress with waterproof PU covered (optional)

22. Weight reading system（optional）

For the packing,in general that is carton box,and could arrange the woody box and trolley,or could as clients requirements,
